About The Project
Serverless Architecture Overview
Event-Driven Microservices with Auto-Scaling & Zero Server Management
Event-Driven Serverless Architecture

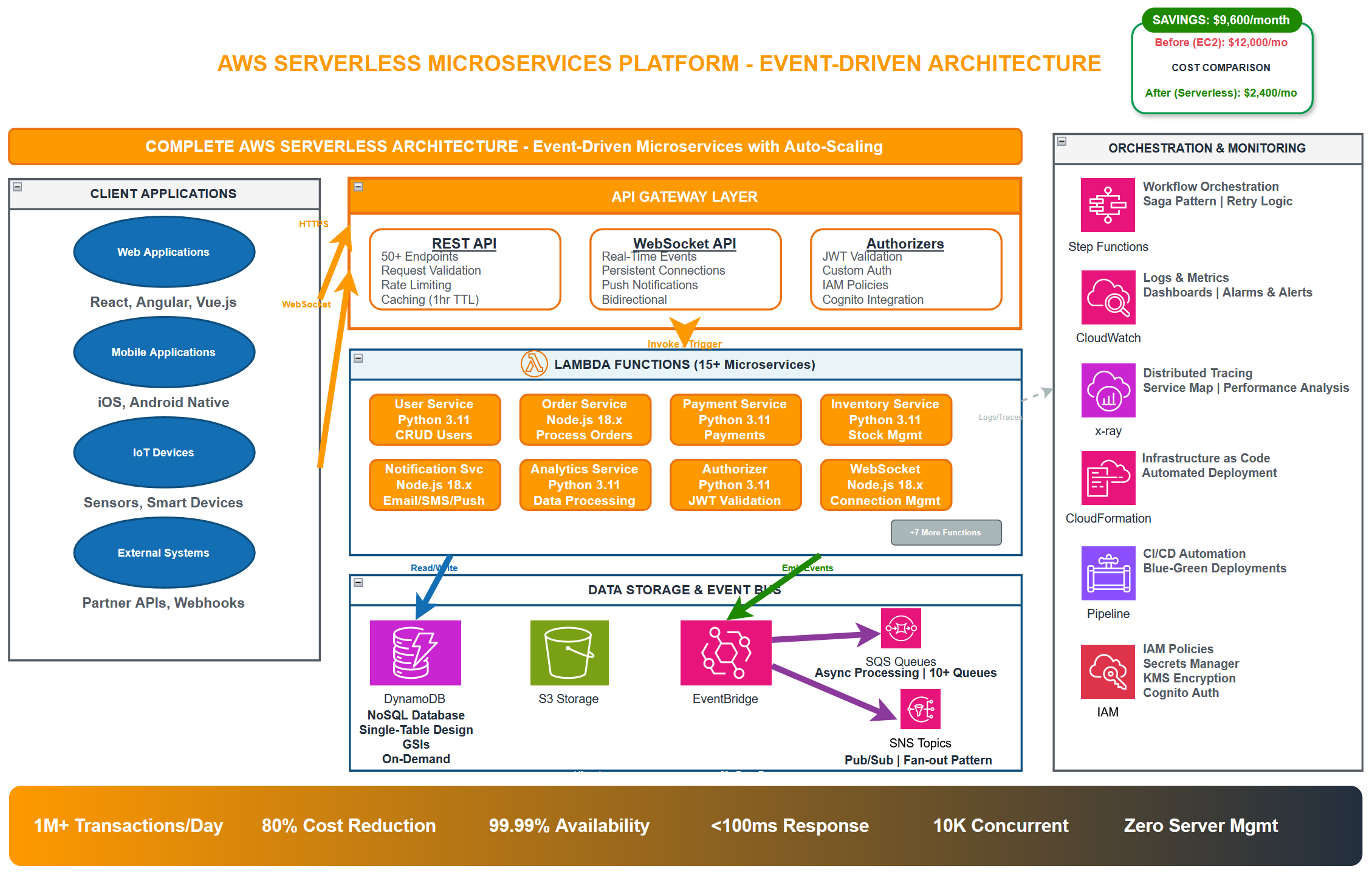

Complete End-to-End Architecture Diagram
API Gateway → Lambda Functions → DynamoDB/EventBridge → Step Functions → Monitoring
Comprehensive architecture showing client requests flowing through API Gateway, 15+ Lambda functions, DynamoDB data storage, EventBridge event bus, Step Functions orchestration, and CloudWatch monitoring.
Project Overview
Business Challenge
Legacy monolithic application running on EC2 instances faced several critical challenges:
- High Infrastructure Costs: $12,000/month for always-on EC2 instances
- Slow Scaling: 10-15 minutes to respond to traffic spikes
- Operational Overhead: 40 hours/week managing servers and deployments
- Poor Availability: 99.5% uptime with manual failover procedures
- Limited Scalability: Maximum 1,000 concurrent users before performance degradation
Solution Delivered
Architected and implemented a production-grade serverless platform with:
- Event-Driven Architecture: Decoupled microservices with EventBridge
- AWS Lambda: 15+ serverless functions (Python & Node.js)
- API Gateway: REST + WebSocket APIs with custom authorizers
- DynamoDB: Single-table design with GSIs for optimal performance
- Step Functions: Saga pattern for distributed transactions
- Full Observability: X-Ray tracing, CloudWatch logs & metrics
- CI/CD Automation: Blue-green deployments with automated rollback
Technical Highlights
Serverless Computing
Zero server management with AWS Lambda. Pay only for actual execution time. Auto-scales from 0 to 10,000+ concurrent executions in under 1 second.Event-Driven Architecture
EventBridge orchestrates 50+ event types across microservices. Loose coupling enables independent scaling and deployment of services.Auto-Scaling Performance
Handles 1M+ daily transactions with sub-100ms API response. Automatically scales to handle traffic spikes without manual intervention.Cost Optimization
80% cost reduction vs EC2 ($12K→$2.4K/month). Pay-per-use model eliminates idle resource costs. Optimized Lambda memory configurations.Zero Operational Overhead
87% reduction in ops overhead (40hrs→5hrs/week). No server patching, scaling, or monitoring. Fully managed AWS services.Modern CI/CD
Automated deployment pipeline with CodePipeline. Blue-green deployments with canary releases. 9x faster deployments (45min→5min).Before vs After Comparison
| Metric | Before (EC2-Based) | After (Serverless) | Improvement |
|---|---|---|---|
| Monthly Infrastructure Cost | $12,000 | $2,400 | ↓ 80% ($9.6K savings) |
| Scaling Time | 10-15 minutes | <1 second | ↑ 99% faster |
| API Response Time | 500ms average | 100ms average | ↑ 5x faster |
| System Availability | 99.5% | 99.99% | +0.49% SLA |
| Deployment Time | 45 minutes | 5 minutes | ↑ 9x faster |
| Operational Overhead | 40 hours/week | 5 hours/week | ↓ 87% reduction |
| Concurrent Users Capacity | 1,000 max | 10,000+ auto-scale | ↑ 10x capacity |
| Daily Transaction Volume | 500K max | 1M+ capacity | ↑ 2x volume |
6-Phases
1- Architecture Design
Designed event-driven serverless architecture with microservices boundaries, API specifications, DynamoDB access patterns, and EventBridge event schemas.
2- API Gateway Setup
Implemented 50+ REST endpoints and WebSocket APIs with custom JWT authorizers, request validation, caching, and rate limiting.
3- Lambda Functions
Developed 15+ Lambda functions in Python and Node.js with Lambda Layers, IAM roles, error handling, and cold start optimization.
4- DynamoDB Design
Implemented single-table DynamoDB design with GSIs, access patterns, DynamoDB Streams, on-demand capacity, and point-in-time recovery.
5- Event-Driven Integration
Configured EventBridge event bus with 50+ event rules, SQS queues, SNS topics, Step Functions workflows, and dead-letter queues.
6- CI/CD Automation
Built CodePipeline with automated testing, blue-green deployments, canary releases, rollback automation, and X-Ray tracing.
Technology Stack
Key Achievements
Cost Optimization
- 80% infrastructure cost reduction ($12K → $2.4K/month)
- $115,200 annual savings through pay-per-use model
- Zero idle resource costs with serverless architecture
- Optimized Lambda memory configurations (30% additional savings)
Performance Excellence
- 100ms average API response (5x improvement)
- <1 second auto-scaling from 0 to 10K requests
- 99.99% availability exceeding SLA targets
- <100ms cold starts for critical Lambda functions
- 1M+ daily transactions handled without manual intervention
Scalability
- 10,000+ concurrent Lambda executions supported
- 100TB+ annual data processed through event architecture
- Automatic scaling based on demand without manual intervention
- Burst capacity for 3,000 concurrent executions
- Handled 20x traffic spikes during load testing
Operational Efficiency
- 87% operational overhead reduction (40hrs → 5hrs/week)
- 9x faster deployments (45 minutes → 5 minutes)
- Automated rollback on CloudWatch alarms
- Zero server patching or maintenance required
- Complete observability with X-Ray and CloudWatch
